Mining Automatic DTH Drilling Rig Hydraulic Blast Hole Integrated DTH Drilling Machine

Name: Mining Automatic DTH Drilling Rig Hydraulic Blast Hole Integrated DTH Drilling Machine
Brand: Sanrock
Price: 1 USD

Quality Mining Automatic DTH Drilling Rig Hydraulic Blast Hole Integrated DTH Drilling Machine for sale

Place of Origin : Zhejiang, China

Brand Name : Sanrock

Supply Ability : 1000Set/Sets per Month

Packaging Details : Nude package for drilling rig; Wooden package for spare parts; Or customer demand;

MOQ : 1 Set/Sets

Price : negotiable

Model Number : S63

Certification : CE ISO 9001:2015

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Delivery Time : 10-25days

Type : Rotary Drilling Rig

Power Type : Diesel

Lifting force : 25KN

Product name : Drilling Machine

Name : DTH Drilling Rig

Working pressure : 1.8Mpa

Rotary speed : 0-120r/min

Drilling Diameter : 115-150mm

Drilling Depth : 30m

Rotary Torque : 3300N.m

Air consumption : 16m3/min

Feature : High Drilling Efficiency,Hydraulic Controlling,Competitive Price

Application : Drilling Rock Drilling Mining Quarry,blasting hole drilling

Power : 194KW

Feed stroke : 3690mm

Maximun push-pull force : 20KN

Dimension(L*W*H) : 6000X2300X2600 mm

Weight : 8850 KG

Travelling speed : 1.5~4 km/h

Contact Now

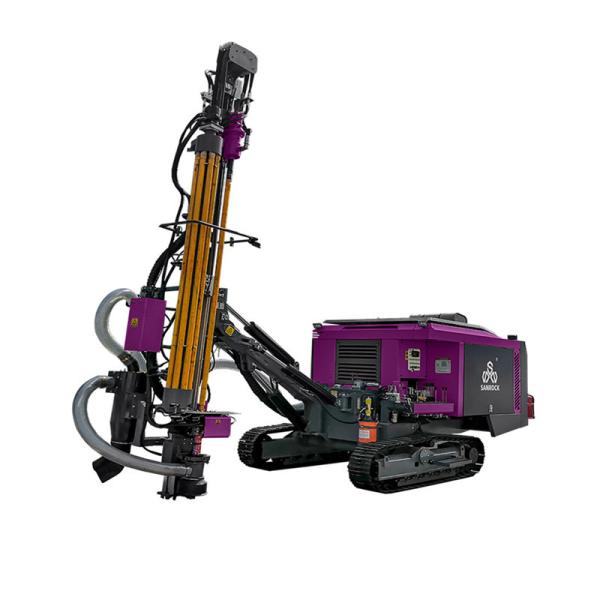

Mining Automatic DTH Drilling Rig Hydraulic Blast Hole Integrated DTH Drilling Machine

S63 Automatic Integrated DTH drilling rig is characterized by excellent integrity and compact design structure. Optional installation of automatic rod change,configuration dry dust collectors environmental protection.
High degree of automation, efficient drilling, simple operation, flexible maneuverability,single operator for labor cost.
Sanrock automatic drilling rig with rod changing system, powerful feeding and rotation design for less jamming in complex rock situation,hefficient High efficiency drilling speed.
Can easily cope with all kinds of drilling angel requirement of landscapes.
The advantageous functions such as precise boom positioning,automatic rod handling.

The integrated Down-The-Hole drilling rig for mining offers several key advantages: it combines the drilling and hammering functions into a single, compact unit, significantly improving operational efficiency and reducing setup time. Its design enhances drilling accuracy and penetration rates in hard rock formations, while minimizing energy consumption and maintenance requirements. The integrated structure also improves portability and maneuverability on rugged mining sites, ensuring higher productivity and lower overall operating costs.

Mining Automatic DTH Drilling Rig Hydraulic Blast Hole Integrated DTH Drilling Machine

At urban construction project, surface mining, quarries ,construction work sites,foundation pit construction, road slope protection project etc.

Products Description

Product name	Integrated Drilling Equipment
Type	Rotary Drilling Rig
Power Type	Diesel
Engine	194KW(Ⅲ)
Application	Drilling Rock Drilling Mining Quarry,blasting hole drilling,Construction Works
Dimension(LWH)	6000X2300X2600 mm
Weight	8850KG
Key Selling Points	High efficiency, high production capacity,Competitive Price
Drilling Diameter	115-150mm
Drilling Depth	Max.30m
Drilling hardness	f=6~20
Volune of diesel oil tank	280 L
Method of dust collecting	14 Core Dry type
Compressor F.A.D	540 CFM
Compressor pressure PSI	17bar
Air end	Two stage compression
Feed stroke	3690mm
Maximun push-pull force	20kn
Compensation length	900mm
Lifting force	25 kn
Method of Feed	motor+roller chain
Travelling speed	1.5~4 km/h
Climbing capacity	30°
Ground clearance	360 mm
Drilling rod	6+1, φ 76mmX3000/2000mm
DTH hammer	3"/4"/5''
Working Pressure	1.8 Mpa
Air consumption	16 m3/min
Rotary torque (Max.)	3300 N. m
Rotary speed	0-120 r/min

Mining Automatic DTH Drilling Rig Hydraulic Blast Hole Integrated DTH Drilling Machine

1.Do you provide design drawing and customization services for complete machines and drilling tools?
Please provide your technical specifications or project background details, and we are ready to develop a customized proposal based on your requirements.
This includes 2D and 3D design drawings , delivered in various formats including DWG, PDF, STEP, and IGES.
Our engineering team specializes in developing tailored solutions that meet your specific operational requirements, geological conditions, and performance objectives.
2.How can I place the order?
Sign the PI,pay deposit,we will arrange the production. After finished production pay balance. Finally we will ship the goods.
3.How is the shipment? How long dose it take?
For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT. You can also appoint shipping method you like before we ship.
4.How is your quality control?
We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.
Our comprehensive inspection service goes beyond basic checks. We analyze performance,and provide a detailed report to maximize your uptime, reduce operating costs, and extend the lifespan of your equipment.
