Crawler Pneumatic Drilling Machine Strong Feed Performance Mining Drill Rig Hydraulic DTH Drilling Rig Manufacturer

Model Number : SPC300D Customized

Air consumption : 15-25m3/min

Overall length of sliding frame : 6100mm

Packaging Details : Nude package for drilling rig; Wooden package for spare parts; Or customer demand;

MOQ : 1 Set/Sets

Delivery Time : 18-25 work days

Application : Mining,quarry,drilling blast hole,mining and construction

Drill boom length : 1912mm

Drilling Depth : 30m

Maximum forward thrust : 11kN

Payment Terms : L/C,D/A,D/P,T/T,Western Union

Power(w) : 3.7KW

Drilling Diameter : 90-165mm

Weight : 5400 KG

Price : negotiable

Power type : Diesel

Supply Ability : 3000 Set/Sets per Month

Product name : Drilling Rig

Rotary Speed : 70rpm

Air quantity : 15-25 m3/min

Certification : CE ISO 9001:2015

Actual air volumes : Max.2.5 MPa

Feature : High Drilling Efficiency,Competitive Price

Dimension(l*w*h) : 6100*2200*2105mm

Brand Name : Sanrock

Working pressure : 2.5Mpa

Place of Origin : Zhejiang, China

Traveling Speed : 3.5km/h

Type : DTH Drilling Rig

Thrust length : 3980mm

Contact Now

Crawler Pneumatic Drilling Machine Strong Feed Performance Mining Drill Rig Hydraulic DTH Drilling Rig Manufacturer

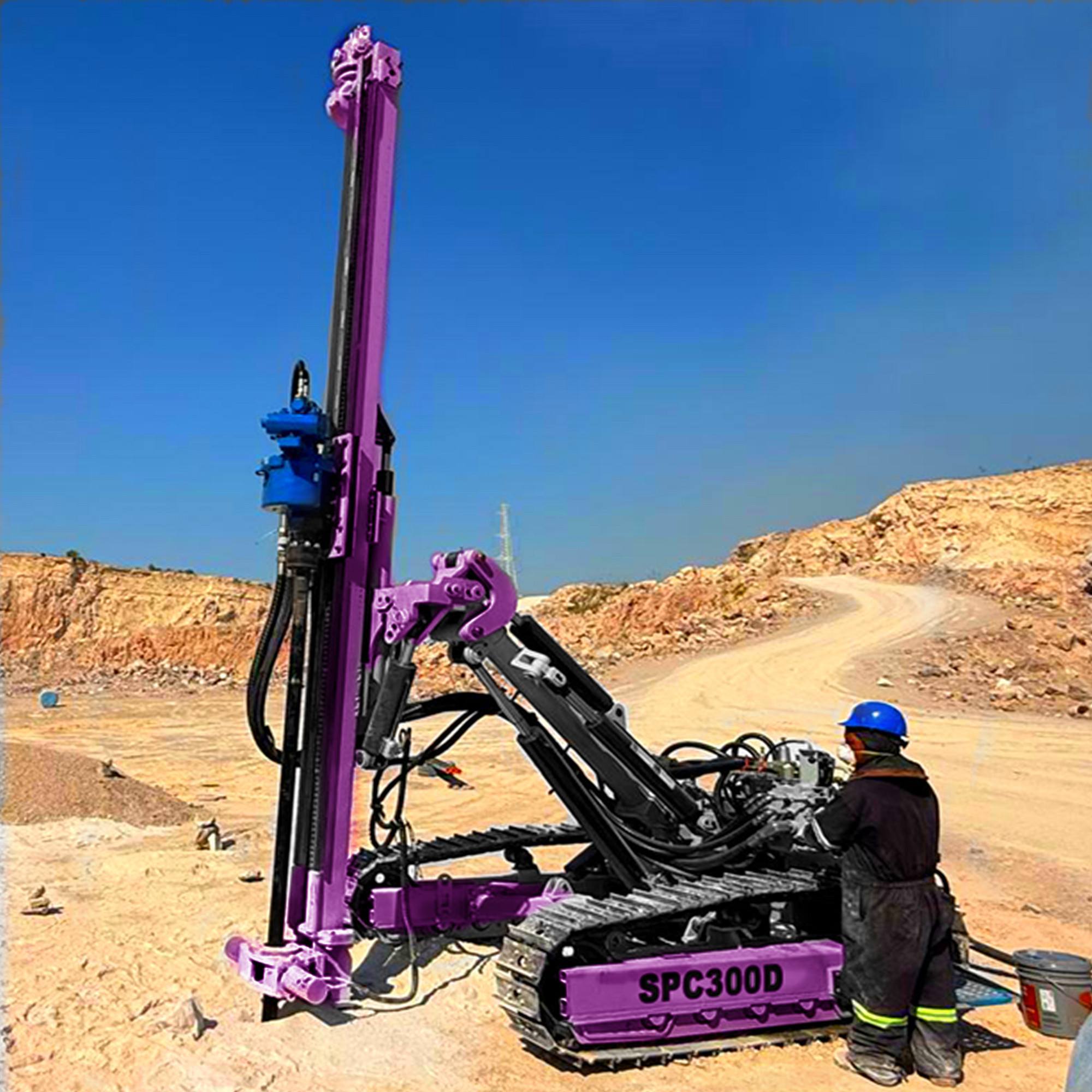

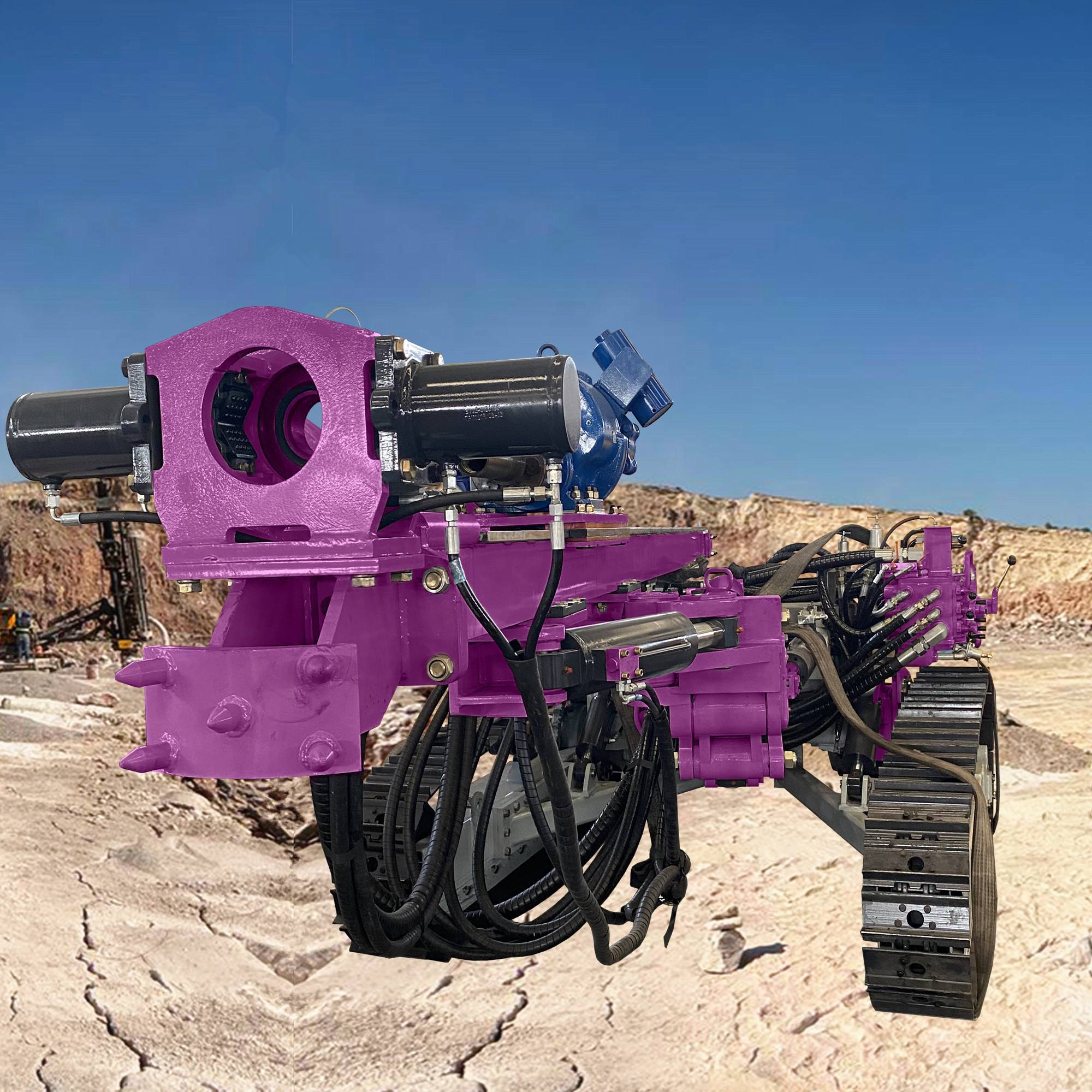

Crawler Mobility for Challenging Jobsites
With a tracked undercarriage, the SPC300D fully pneumatic drill rig can travel at speeds of up to 3.5 km/h and climb gradients of up to 35°. Its 310 mm-wide track shoes, 250 mm minimum ground clearance and 5,400 kg operating weight provide a stable working platform during movement and drilling. These features allow the machine to operate effectively on rough roads, quarry floors, mountainous construction sites and other uneven working environments where dependable mobility and equipment stability are essential.
Its heavy-duty pneumatic motor drives a rotary hammer mechanism, enabling rapid penetration through hard rock, concrete, and other tough materials. The rig features adjustable feed pressure and rotation speed, allowing precise control over drilling depth and diameter. With a modular design, it is easily transportable and adaptable to various drilling configurations, including vertical, horizontal, and angled boreholes. Built for durability, its corrosion-resistant components and ergonomic controls ensure reliability and operator comfort in harsh conditions. Ideal for projects requiring mobility, safety, and power, the fully pneumatic drill rig delivers unmatched performance in remote or hazardous worksites. Rotation Reducer:Optimized internal structure for simplified maintenance. Enhanced shock absorbers for reduced drilling impact reaction forces. Gear-type rotary motor with rapid speed, high starting torque, quick start/stop response, and overload protection. Minimal temperature rise during prolonged operation. Centralized Hydraulic Control System:Ergonomically designed integrated control panel consolidates hydraulic actuators and drilling systems for optimized efficiency.Foldable detachable operation pedal enables single-operator functionality. Mechanical Arm:Novel five-joint hydraulic cylinder structure expands drilling angles and operational range.Extended sliding frame paired with manganese steel slide rails and multi-group roller-designed sliding plate withstands high torque, resists deformation, and extends service life.

Crawler Pneumatic Drilling Machine Strong Feed Performance Mining Drill Rig Hydraulic DTH Drilling Rig Manufacturer

Products Description

Product name	Drilling Rig
Model	SPC300D	SPC300T
Dimension	610022002105mm	577722101942mm
Min.Ground Clearance	250 mm	250mm
Weight	5400 kg	5400kg
Travel Speed	0-3.5 km/h	0-3.5km/h
Travel Motor Power	8.8 kW x2	8.8 kW x2
Gradeability	35°	35°
Swing Angle	13°	13°
Rotary Head Power	3.7kw	3.8kw
Rotary Torque	2000 Nm (at 0.7 MPa)	365N.m
Max.Rotary Speed	70rpm	380rpm
Air Consumption	1.73 m³/min at 0.3Mpa	16m³/min at 0.55Mpa
Max.Air Pressure	2.5MPa	1.0Mpa
Air Quantity	15-25 m3/min	15-25m³/min
Drill rod	φ76,φ89 X3000 mm	T38, T45*3050/3660mm
Hydraulic tank capacity	18L	55L
Feed stroke	3980 mm	3980mm
Maximum forward thrust	11KN	11KN
Sliding frame swing	left 47°/right 54°	Left 47°/Right 54°
Drill boom tilt	Up 46°/Down 23°	Up 46°/Down 23°
Drill boom swing	Left 40°/Rght 40°	Left 40°/Right 40°

Crawler Pneumatic Drilling Machine Strong Feed Performance Mining Drill Rig Hydraulic DTH Drilling Rig Manufacturer

Company Profile

Crawler Pneumatic Drilling Machine Strong Feed Performance Mining Drill Rig Hydraulic DTH Drilling Rig Manufacturer

Do you provide design drawing and customization services for complete machines and drilling tools?
Please provide your technical specifications or project background details, and we are ready to develop a customized proposal based on your requirements.
This includes 2D and 3D design drawings , delivered in various formats including DWG, PDF, STEP, and IGES.
Our engineering team specializes in developing tailored solutions that meet your specific operational requirements, geological conditions, and performance objectives.

1.What can you buy from us?

Tunneling Jumbo drilling rig ,DTH drilling rig,Automatic drilling rig with rod changing system,rotary drilling rig,pile driver machine, core drilling rig ,water well drilling rig,truck mounted water well drilling rig,screw air compressor,piston air compressor,pneumatic rock drill ,drill bit,Tricone bit ,eccentric casing system,DTH hammer,drill rod,spare parts etc.

2.How can I make payment?

A: You can pay directly online on with credit card, or TT, Western Union, LC etc.

3. How is the shipment? How long dose it take?

A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT.You can also appoint shipping method you like before we ship.

4.How is your quality control? A: We have our own experienced QC.There will be strict inspection and testing for every order before shipping out.

5.Do you have any certificate of authorization?

A: Our machinery is CE certified.
