Hydraulic Pile Driver Anchoring Construction Multiangle Drilling Rotary Borehole Pile Driving Machine

Product Categories

Crawler Water Well Drilling Rig [139]
Truck Mounted Water Well Drilling Rig [52]
Trailer Mounted Water Well Drilling Rig [87]
Jumbo Drilling Rig [52]
DTH Drilling Machine [78]
Integrated Drilling Equipment [98]
Top Hammer DTH Drilling Rig [27]
Bucket Drilling Rig [40]
Core Drilling Rig [202]
DTH Drilling Tools [35]
Hydraulic Jack Hammer [73]
Screw Air Compressor [136]
Piston Air Compressor [30]
Drill Rods [50]
Pile Driver Machine [70]
Rotary Drilling Rig [41]
PDC Tricone Bits [79]

Quzhou Sanrock Heavy Industry Machinery Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Hydraulic Pile Driver Anchoring Construction Multiangle Drilling Rotary Borehole Pile Driving Machine

Name: Hydraulic Pile Driver Anchoring Construction Multiangle Drilling Rotary Borehole Pile Driving Machine
Brand: Sanrock
Price: 1 USD

Quality Hydraulic Pile Driver Anchoring Construction Multiangle Drilling Rotary Borehole Pile Driving Machine for sale

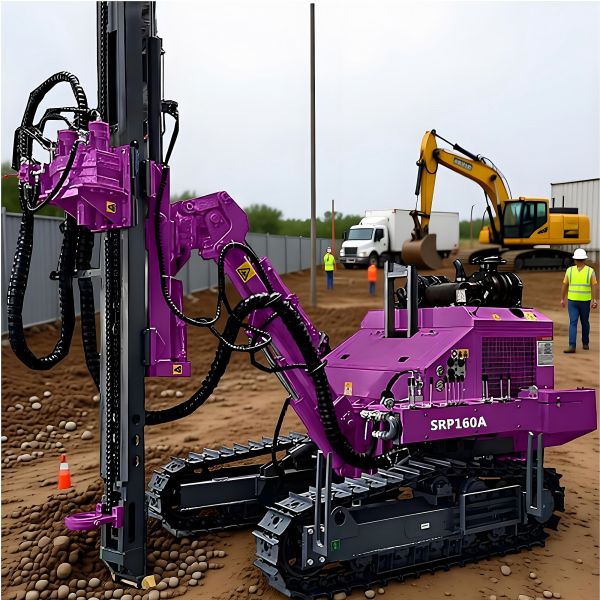

Model Number : SRP160A

Name : Pile Driver

Dimension(L*W*H) : 5500*2100*2200mm

Feeding force : 6KN

Place of Origin : Zhejiang, China

Engine Type : Water-cooled six-cylinder EFI diesel engine

Packaging Details : in wooden box, then in sea container

Grade ability : 30°

Payment Terms : L/C,D/A,D/P,T/T,Western Union

Rod diameter : 60/64/76mm

Rotation rate : 0-140rpm

Lifting force : 16KN

MOQ : 1 Set/Sets

Delivery Time : 15-25days

Hole diameter : 90-160mm

Groundclearance : 420mm

Feeding stroke : 4105mm

Price : negotiable

Rod length : 3m

Max. rotation torque : 3220Nm

Certification : IOS9001 CCC

Engine Model : 73.5KW /78KW

Supply Ability : 1000 Set/Sets per Month

Track width : 253mm

Hydraulic pressure : 18bar (high pressure)

Brand Name : Sanrock

Power Type : Diesel

Weight : 5600kg

Contact Now

Hydraulic Pile Driver Anchoring Construction Multiangle Drilling Rotary Borehole Pile Driving Machine

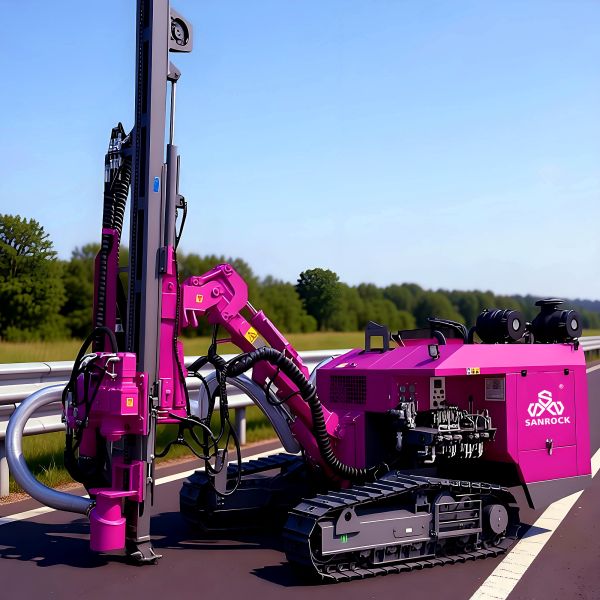

This full hydraulic piling rig adopts a hydraulic drive system to deliver high torque and stable power output, featuring precise speed and angle control. Equipped with an adjustable drill mast and sturdy crawler chassis, it supports multi-angle drilling, anchoring and piling operations across soil, gravel and rock strata. It boasts high construction efficiency, low vibration and reliable overall performance. Widely used for slope reinforcement, deep foundation pit support, anti-floating anchoring, new energy foundation construction and municipal infrastructure projects, it adapts well to complex terrain and meets diverse geotechnical engineering requirements.

Full hydraulic anchoring piling rig with flexible angle adjustment and high drilling precision. The hydraulic system ensures steady power and smooth operation, suitable for slope stabilization, foundation reinforcement, photovoltaic piling and infrastructure construction on various ground conditions.

Hydraulic Pile Driver Anchoring Construction Multiangle Drilling Rotary Borehole Pile Driving Machine

Products Description

Brand Name:SANROCK
Product Name:Pile Driver
Engine Model: 73.5KW /78KW
Engine Type:Water-cooled six-cylinder EFI diesel engine
Rated power:73.5/2200Kw/RPM,78/2200Kw/RPM
Drill rod changer
Hole diameter :90-160mm
Rod length:3m
Rod diameter:60/64/76mm
Rod quantity:7
Dust collector :Dry tydraulic dust collecting method (Wet type optional)
Undercarriage
Track width :253mm
Groundclearance :420mm
Track oscillation :±10°
Walking speed :low 2, high 3 km/h
Grade ability:30°
Hydraulic system
Hydraulic pressure :18bar (high pressure)
Rotation motor
Rotation rate :0-140rpm
Max. rotation torque :3220Nm
Feeding method Cylinder plus chain
Feeding force :6KN
Lifting force :16KN
Feeding stroke :4105mm
Promote compensation :1250mm
Dimension(L*W*H):5500*2100*2200mm
Weight:5600kg

Hydraulic Pile Driver Anchoring Construction Multiangle Drilling Rotary Borehole Pile Driving Machine

Company Introduction

Hydraulic Pile Driver Anchoring Construction Multiangle Drilling Rotary Borehole Pile Driving Machine

1.Do you provide design drawing and customization services for complete machines and drilling tools?
Please provide your technical specifications or project background details, and we are ready to develop a customized proposal based on your requirements.
This includes 2D and 3D design drawings , delivered in various formats including DWG, PDF, STEP, and IGES.
Our engineering team specializes in developing tailored solutions that meet your specific operational requirements, geological conditions, and performance objectives.
2.What can you buy from us?
DTH drilling rig Integrated DTH DTH drilling rig water well drilling rig truck mounted water well drilling rig core drilling rig reverse circulation drilling rig highway pile driver solar pile driver anchor pile driver rotary drill rig Top Hammer drill rig Underground jumbo drill rig DTH hammer screw air compressor piston air compressor pneumatic rock drill drill rod drill bit PDC drill bit top hammer drill bit tricone bit spare parts
3.How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT. You can also appoint shipping method you like before we ship.
4.How is your quality control?
A: We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.
