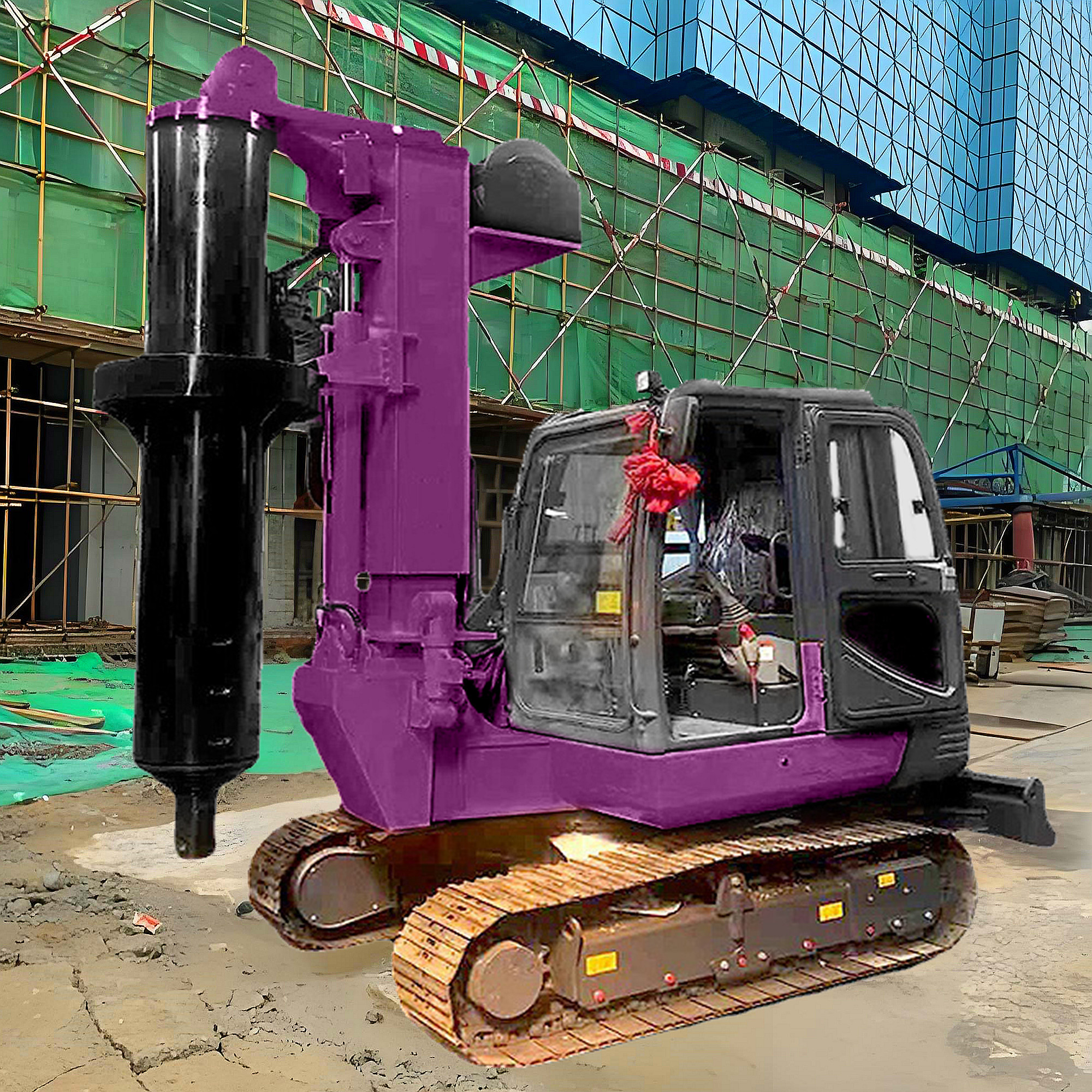

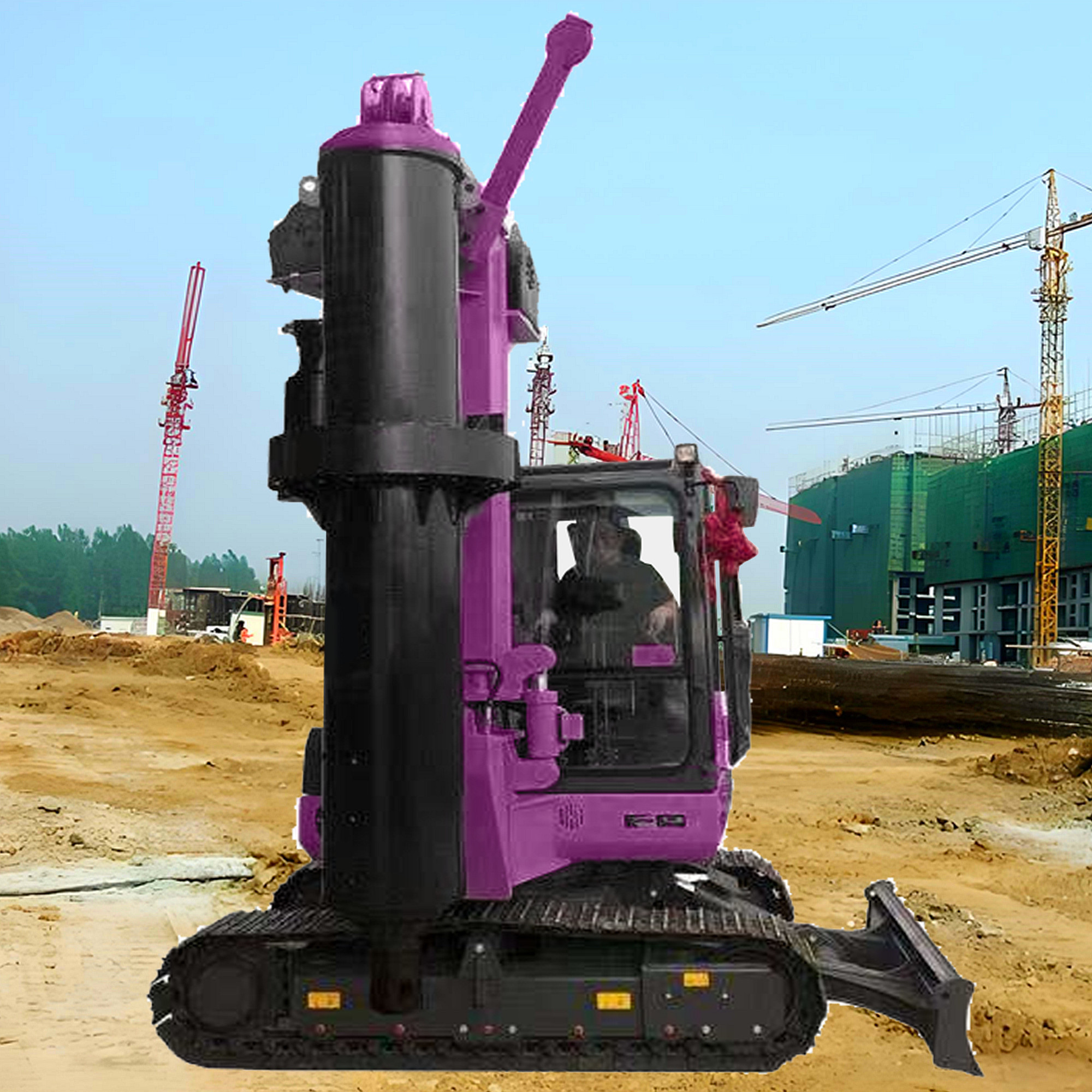

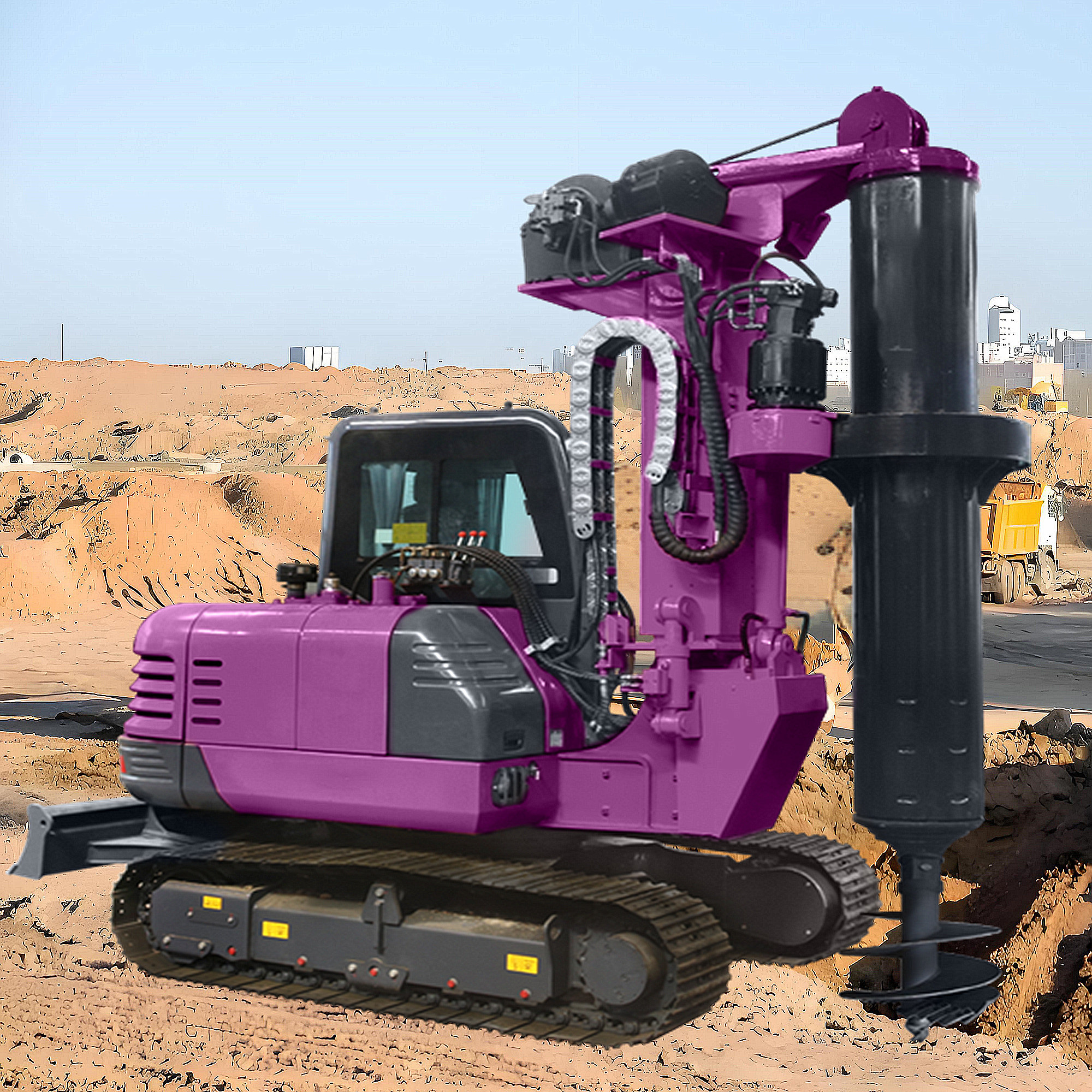

The Small Crawler-type Rotary Drilling Rig is a highly versatile and maneuverable piece of earth-drilling equipment, designed for efficiency
in confined or challenging terrains. Its compact footprint and crawler undercarriage provide exceptional stability and low ground pressure,
enabling it to operate effectively on rough, soft, or uneven ground where larger rigs cannot access.
Powered by an advanced hydraulic system, this rig delivers robust torque and drilling power for creating boreholes of various diameters
and depths. It is ideally suited for a wide range of applications, including:
Urban Construction: Foundation piles for small buildings, fence posts, and telecommunication towers.
Geotechnical Investigation: Soil sampling and environmental monitoring wells.
Agricultural and Landscaping Projects: Installing irrigation systems and planting holes.
Key features typically include a user-friendly operator cabin with intuitive controls, adjustable mast for precise drilling angles, and quick-coupling
systems for easy attachment of different drilling tools (such as augers and core barrels). This combination of power, precision, and portability
makes the small crawler rotary drill an indispensable tool for modern, small-to-medium-scale foundation and drilling work.
Products Description
|
Product name
|
Rotary Drilling Machine
|
|
|
Type
|
Rotary Drilling Rig
|
|
|
Model Number
|
SRP13
|
|
|
|
1.Installed On XCMG Excavator
|
XE55DA
|
2.Installed On SUNWARD Excavator
|
SWE60E
|
|
Engine
|
KUBOTA
|
Engine
|
YANMAR
|
|
Max.Drilling Diameter(mm)
|
1000
|
Max.Drilling Diameter(mm)
|
1000
|
|
Max.Drilling Depth(m)
|
13
|
Max.Drilling Depth(m)
|
13
|
|
Rotary Head
|
Rotary Head
|
|
Rated Torque(KN.m)
|
50
|
Rated Torque(KN.m)
|
50
|
|
Feed Strock(m)
|
1.1
|
Feed Strock(m)
|
1.1
|
|
Rotary Speed(rpm)
|
10-45
|
Rotary Speed(rpm)
|
10-45
|
|
Max.Pullling force(KN)
|
27
|
Max.Pullling force(KN)
|
27
|
|
Max.Pushing force(KN)
|
25
|
Max.Pushing force(KN)
|
25
|
|
Winch
|
Winch
|
|
Main Winch Rated Tension(KN)
|
38
|
Main Winch Rated Tension(KN)
|
38
|
|
Auxiliary Winch Rated Tension(KN)
|
14
|
Auxiliary Winch Rated Tension(KN)
|
14
|
|
Crawler Chassis
|
Crawler Chassis
|
|
Chassis Width(mm)
|
1880
|
Crawler Length(mm)
|
2495
|
|
Chassis Width(mm)
|
1880
|
|
Overall Drilling Weight(T)
|
8.6
|
Overall Drilling Weight(T)
|
9.3
|
|
Dimension (transportation condition)
|
3100*1920*3500mm
|
Dimension (transportation condition)
|
3100*1900*3500mm
|
|
Company Profile
1.Do you provide design drawing and customization services for complete machines and drilling tools?
Please provide your technical specifications or project background details, and we are ready to develop a customized proposal based on your requirements.
This includes 2D and 3D design drawings , delivered in various formats including DWG, PDF, STEP, and IGES.
Our engineering team specializes in developing tailored solutions that meet your specific operational requirements, geological conditions, and performance objectives.
