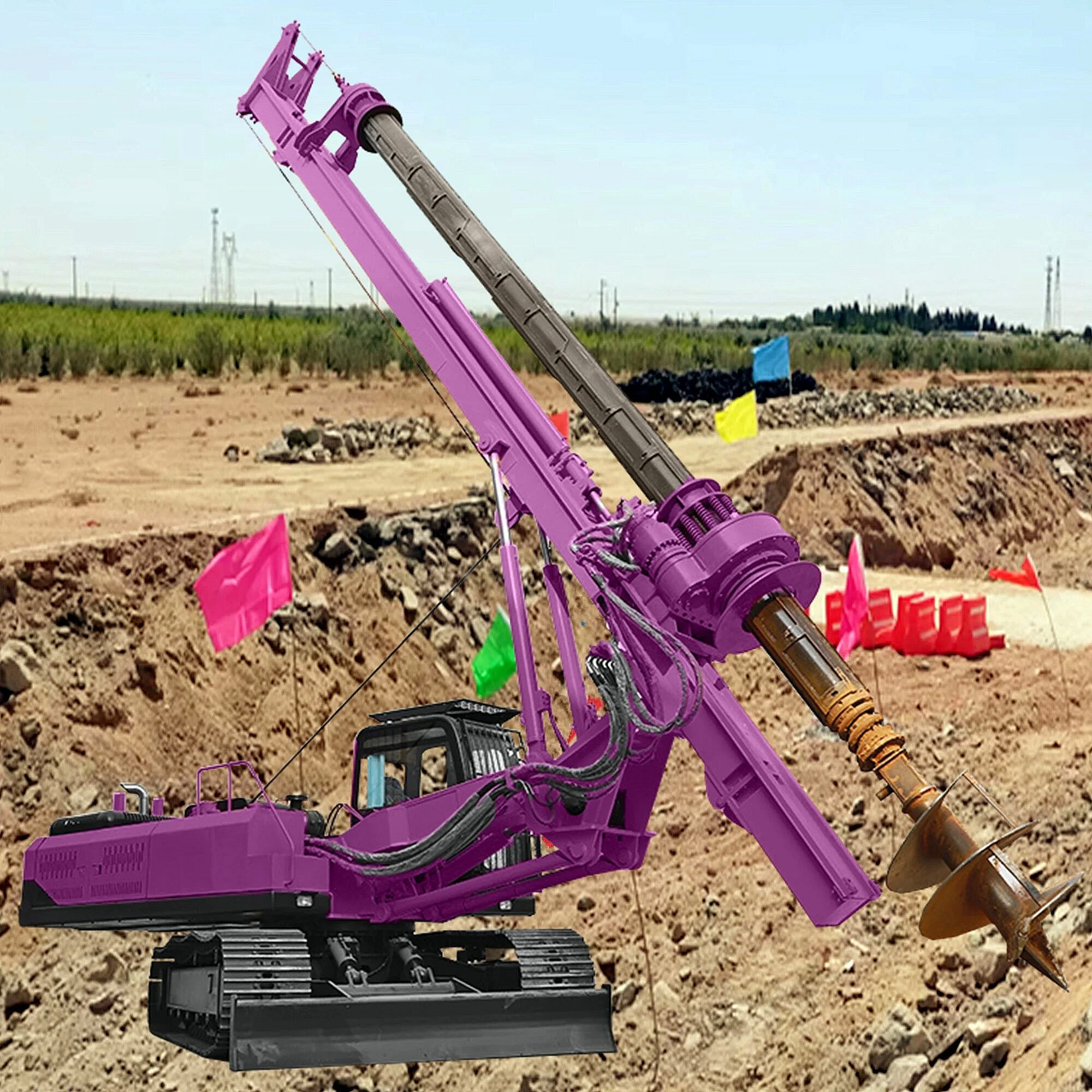

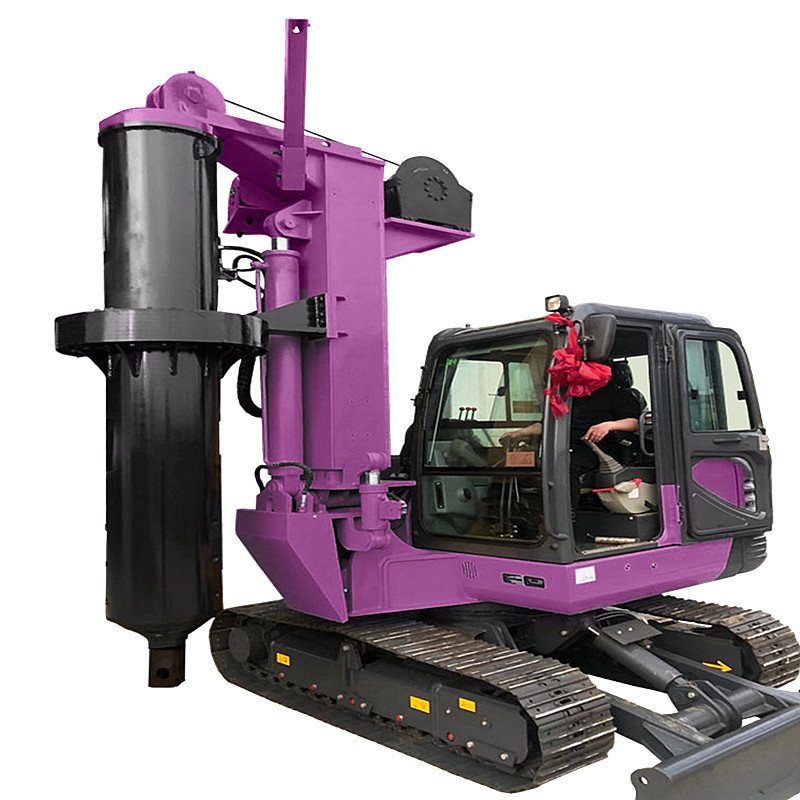

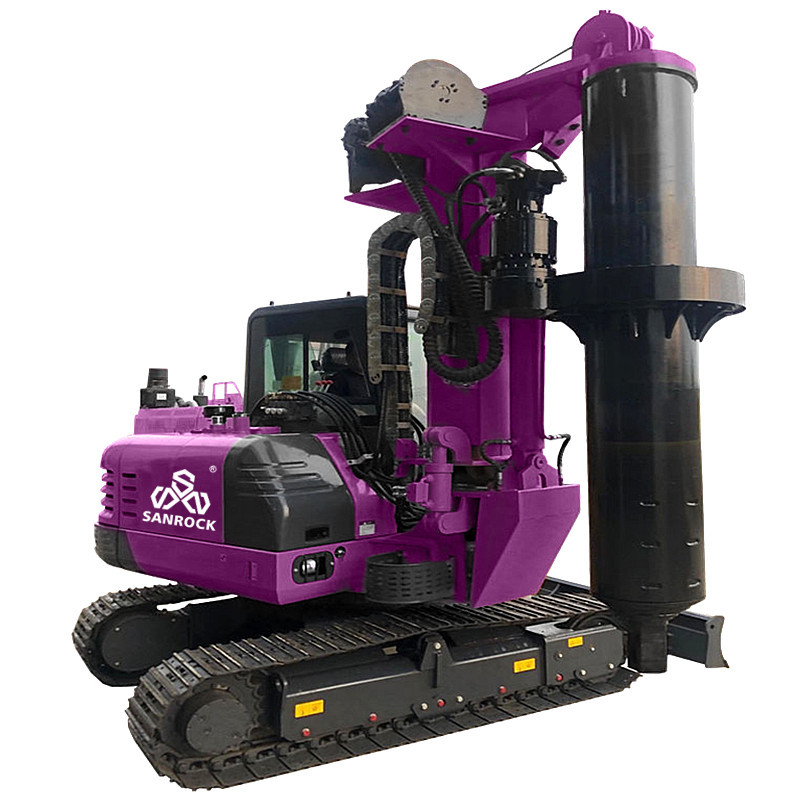

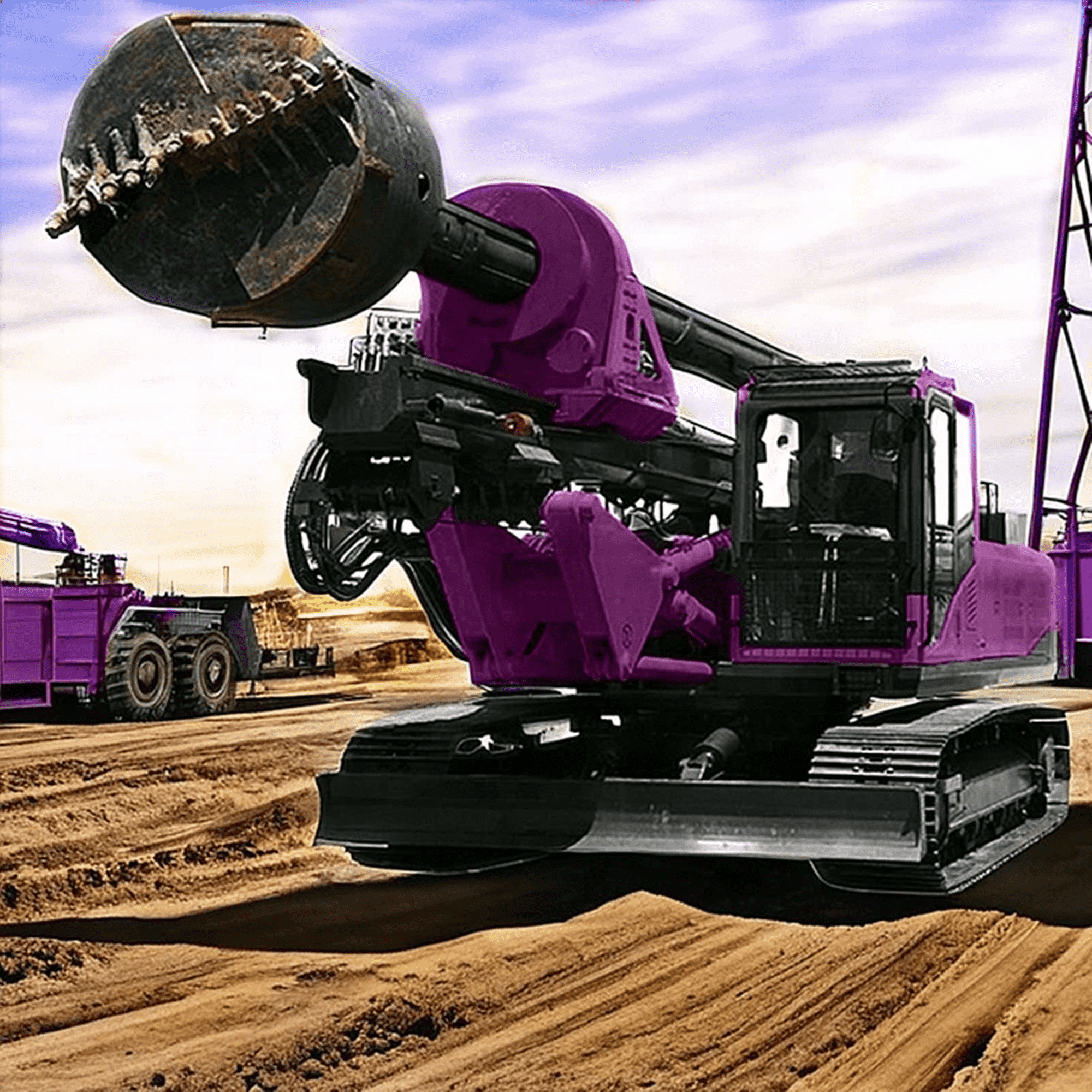

The Small Crawler-type Rotary Drilling Rig is a compact and highly efficient machine engineered specifically for foundational work in
construction projects. It excels in creating precise boreholes for cast-in-place piles, which form the critical structural base for buildings,
walls, and other infrastructures.
Its defining features make it ideal for constrained urban sites and challenging ground conditions:
Crawler Undercarriage: Provides superior mobility and stability on rough or soft terrain, with minimal ground disturbance.
Hydraulic Power System: Delivers high torque for drilling through various soil layers, including clay, sand, and weathered rock.
Compact Design: Allows for easy operation in tight spaces common in urban construction and residential developments.
Versatile Drilling Tools: Compatible with different augers and drilling buckets to handle a range of ground conditions and pile diameter requirements.
This rig is indispensable for tasks such as drilling for foundation piles, micro-piles, and ground anchoring. By offering a powerful yet maneuverable
solution, it significantly enhances efficiency, safety, and precision in the critical initial phases of building construction.
Products Description
|
Product name
|
Rotary Drilling Machine
|
|
|
Type
|
Rotary Drilling Rig
|
|
|
Model Number
|
SRP13
|
|
|
|
1.Installed On XCMG Excavator
|
XE55DA
|
2.Installed On SUNWARD Excavator
|
SWE60E
|
|
Engine
|
KUBOTA
|
Engine
|
YANMAR
|
|
Max.Drilling Diameter(mm)
|
1000
|
Max.Drilling Diameter(mm)
|
1000
|
|
Max.Drilling Depth(m)
|
13
|
Max.Drilling Depth(m)
|
13
|
|
Rotary Head
|
Rotary Head
|
|
Rated Torque(KN.m)
|
50
|
Rated Torque(KN.m)
|
50
|
|
Feed Strock(m)
|
1.1
|
Feed Strock(m)
|
1.1
|
|
Rotary Speed(rpm)
|
10-45
|
Rotary Speed(rpm)
|
10-45
|
|
Max.Pullling force(KN)
|
27
|
Max.Pullling force(KN)
|
27
|
|
Max.Pushing force(KN)
|
25
|
Max.Pushing force(KN)
|
25
|
|
Winch
|
Winch
|
|
Main Winch Rated Tension(KN)
|
38
|
Main Winch Rated Tension(KN)
|
38
|
|
Auxiliary Winch Rated Tension(KN)
|
14
|
Auxiliary Winch Rated Tension(KN)
|
14
|
|
Crawler Chassis
|
Crawler Chassis
|
|
Chassis Width(mm)
|
1880
|
Crawler Length(mm)
|
2495
|
|
Chassis Width(mm)
|
1880
|
|
Overall Drilling Weight(T)
|
8.6
|
Overall Drilling Weight(T)
|
9.3
|
|
Dimension (transportation condition)
|
3100*1920*3500mm
|
Dimension (transportation condition)
|
3100*1900*3500mm
|
|
Company Profile
1.Do you provide design drawing and customization services for complete machines and drilling tools?
Please provide your technical specifications or project background details, and we are ready to develop a customized proposal based on your requirements.
This includes 2D and 3D design drawings , delivered in various formats including DWG, PDF, STEP, and IGES.
Our engineering team specializes in developing tailored solutions that meet your specific operational requirements, geological conditions, and performance objectives.
What can you buy from us?
DTH drilling rig Integrated DTH DTH drilling rig water well drilling rig truck mounted water well drilling rig core drilling rig reverse circulation drilling rig highway pile driver solar pile driver anchor pile driver rotary drill rig Top Hammer drill rig Underground jumbo drill rig DTH hammer screw air compressor piston air compressor pneumatic rock drill drill rod drill bit PDC drill bit top hammer drill bit tricone bit spare parts
2.How can I make payment?
A:You can pay by credit card, TT, Western Union, LC etc.
3.How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT. You can also appoint shipping method you like before we ship.
4.How is your quality control?
A: We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.
