Hard Rock Borehole Drilling Machine Power 93kw Surface Drill Rigs Mining Crawler Drilling Rig

Name: Hard Rock Borehole Drilling Machine Power 93kw Surface Drill Rigs Mining Crawler Drilling Rig
Brand: Sanrock
Price: 1 USD

Quality Hard Rock Borehole Drilling Machine Power 93kw Surface Drill Rigs Mining Crawler Drilling Rig for sale

Brand Name : Sanrock

Model Number : R70

Certification : CE ISO 9001:2015

Place of Origin : Zhejiang, China

MOQ : 1 Set/Sets

Price : negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union,

Supply Ability : 100 Set/Sets per Month

Delivery Time : 18-25 work days

Packaging Details : Nude package for drilling rig; Wooden package for spare parts; Or customer demand;

Product name : dth drilling rig

Drilling Diameter : 90-300mm

Drilling Depth : 50m

Engine : Yuchai/Weichai/

Power type : Diesel

Power(w) : 70kw(Stage II)/74(stage III)/93(stage II)

Lifting force : 28KN

Rotate speed : 0-160r/min

Application : Mining,quarry,drilling blast hole,mining and construction

Usage : Ore

Type : Rotary Drilling Rig,DTH drilling or Mud rotary drilling

Dimension(l*w*h) : 7000*2350*2100mm

Weight : 6800 KG

Warranty : 1 Year

Contact Now

Hard Rock Borehole Drilling Machine Power 93kw Surface Drill Rigs Mining Crawler Drilling Rig

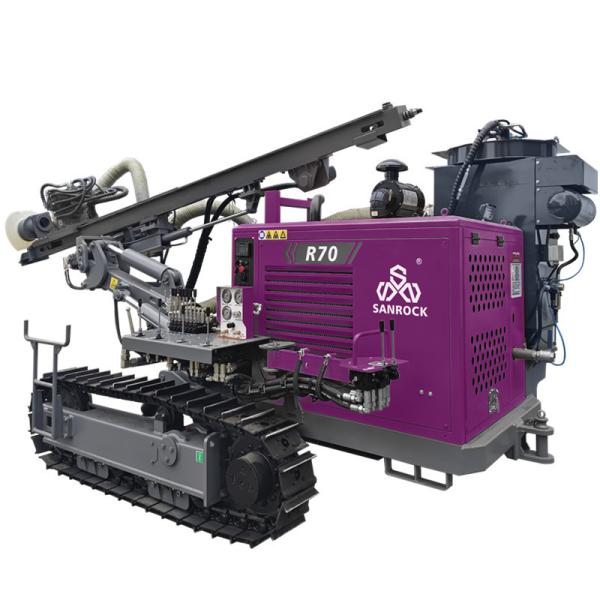

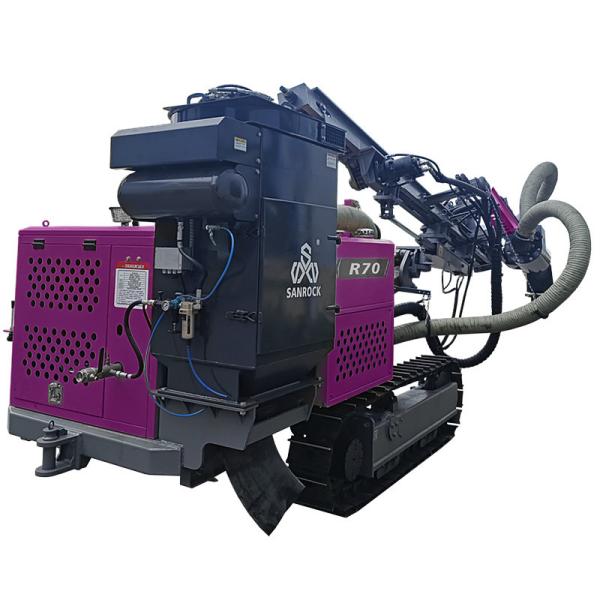

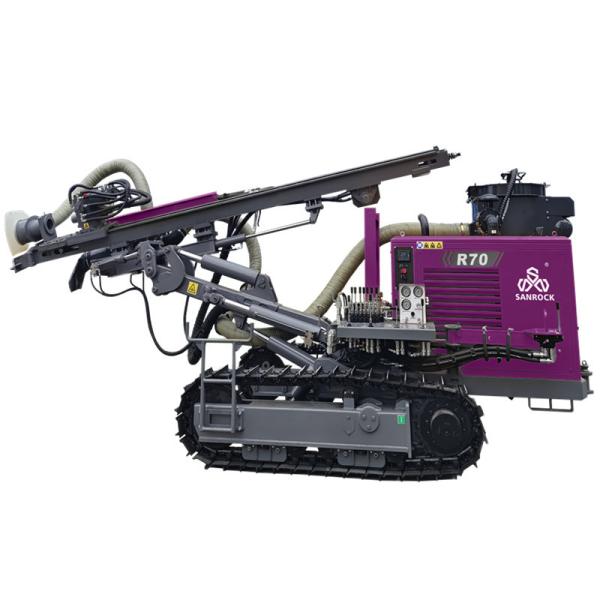

R70 blasting photovoltaic dual-purpose drilling rig has comprehensively optimizedstructure, lower footage cost and more humanized design. The diesel engine hydraulic oil pump group is used as the power unit, and the hydraulic motor is used to realize the auxiliary actions such as the rotation, propulsion, lifting, walking of the drill and the swing angle positioningof the hydraulic cylinder.

R70crawler hydraulic down the hole drill is mainly used for drilling blasting holes in photovoltaic and hydropower projects, open-pit mining, road construction, and national defense projects.

Equipped with automated depth control and computerized monitoring systems, this drill rig optimizes hole accuracy while reducing manual intervention. Its modular design allows quick adaptation for various drilling methods, including top-hammer or DTH (Down-The-Hole) techniques, suited for blast hole drilling, exploration sampling, or ground reinforcement. Safety features such as emergency shutdowns, dust suppression systems, and reinforced operator cabins ensure compliance with stringent mining safety standards. With high fuel efficiency and low maintenance requirements, it significantly enhances productivity while minimizing operational costs in both open-pit and underground mining scenarios.

Hard Rock Borehole Drilling Machine Power 93kw Surface Drill Rigs Mining Crawler Drilling Rig

Products Description

Product name	DTH Drilling Rig
Drilling Diameter	90-300mm
Drilling Depth	50m
Drill Pipe Size	76X3000mm
The Impactor Configuration Is Recommended	3"-6"
Rotation Rate	0-160rpm
Max.Rotation Torque	3300N.m
Lifting Force	28KN
Feed Stroke	4138mm
Drill Arm Pitching	Left and Right35 °
Walking Speed	2.5km/h
Grade Ability	30 °
Hook Height	450mm
Dusting Method	Option
Engine	Yuchai/Weichai/
Rated Power	70kw(Stage II)/74(stage III)/93(stage II)
Fuel Tank Capacity	120L
Dimension (LWH)	7000×2350×2100
Weight	6800kg

Hard Rock Borehole Drilling Machine Power 93kw Surface Drill Rigs Mining Crawler Drilling Rig

Company Profile

1.What can you buy from us?

Tunneling Jumbo drilling rig ,DTH drilling rig,Automatic drilling rig with rod changing system,rotary drilling rig,pile driver machine, core drilling rig ,water well drilling rig,truck mounted water well drilling rig,screw air compressor,piston air compressor,pneumatic rock drill ,drill bit,Tricone bit ,eccentric casing system,DTH hammer,drill rod,spare parts etc.

2.How can I make payment?

A: You can pay directly online on with credit card, or TT, Western Union, LC etc.

3. How is the shipment? How long dose it take?

A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT.You can also appoint shipping method you like before we ship.

4.How is your quality control? A: We have our own experienced QC.There will be strict inspection and testing for every order before shipping out.

5.Do you have any certificate of authorization?

A: Our machinery is CE certified.
