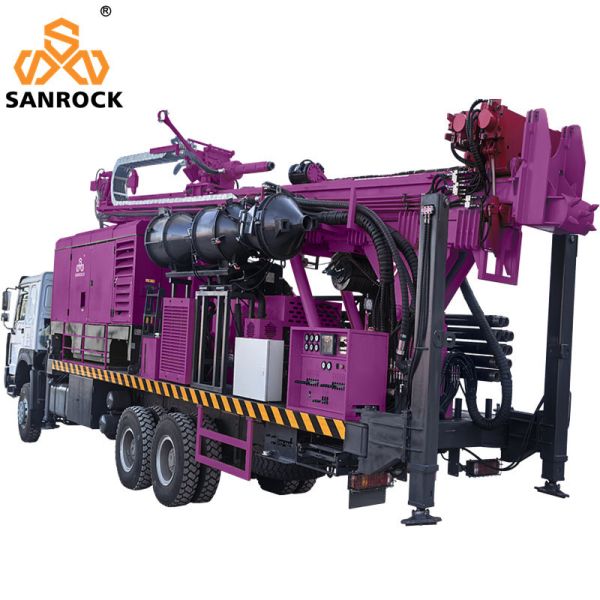

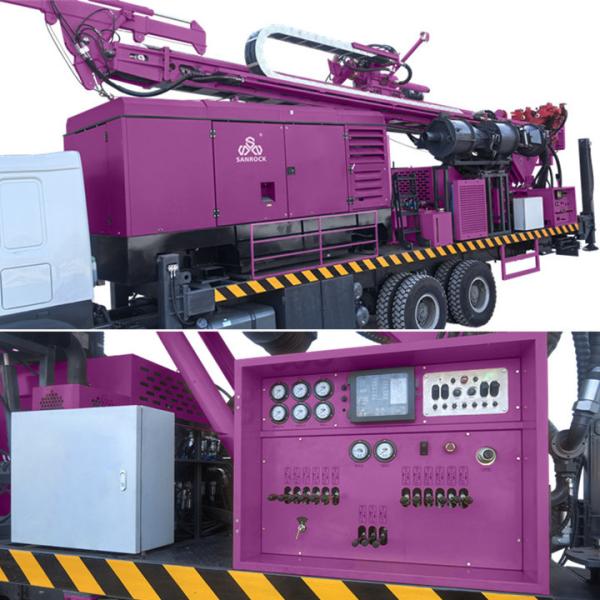

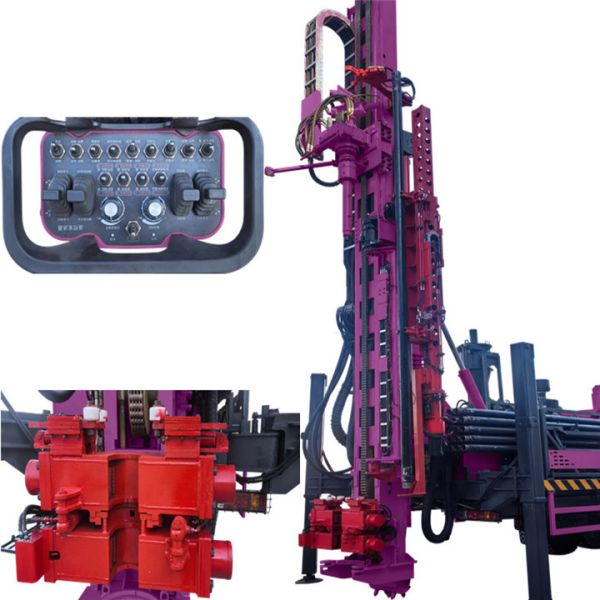

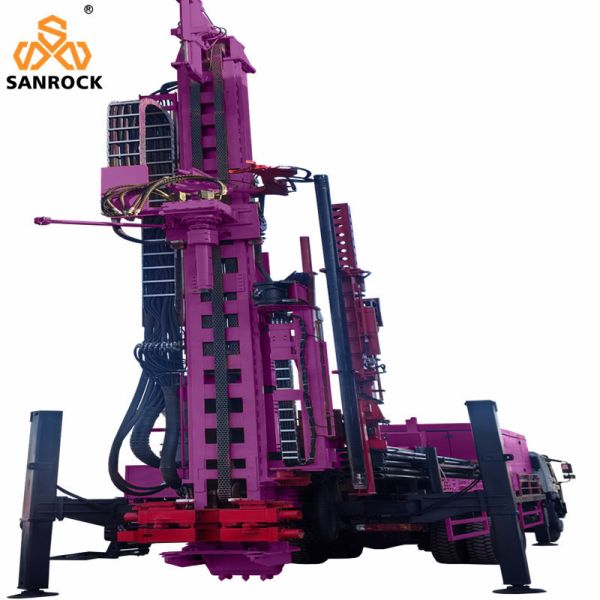

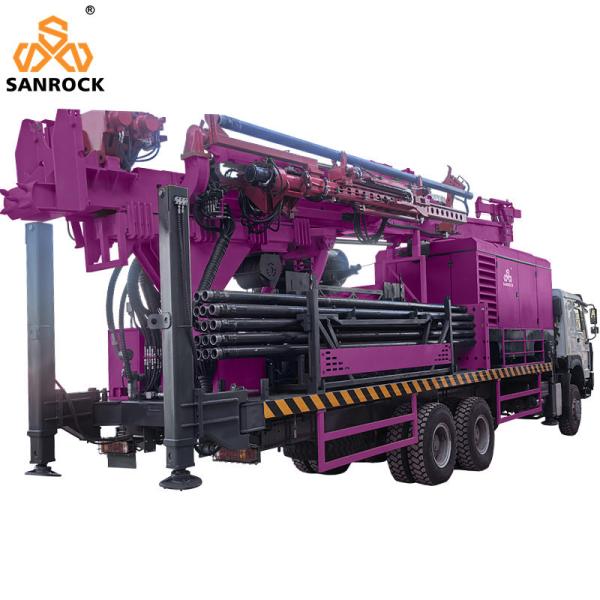

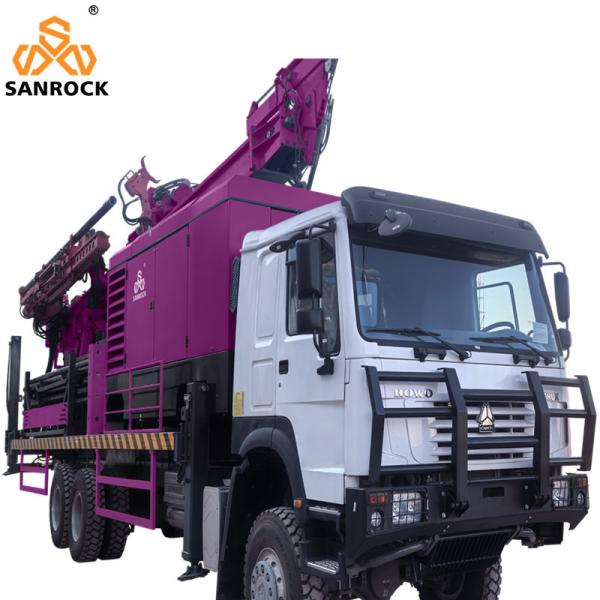

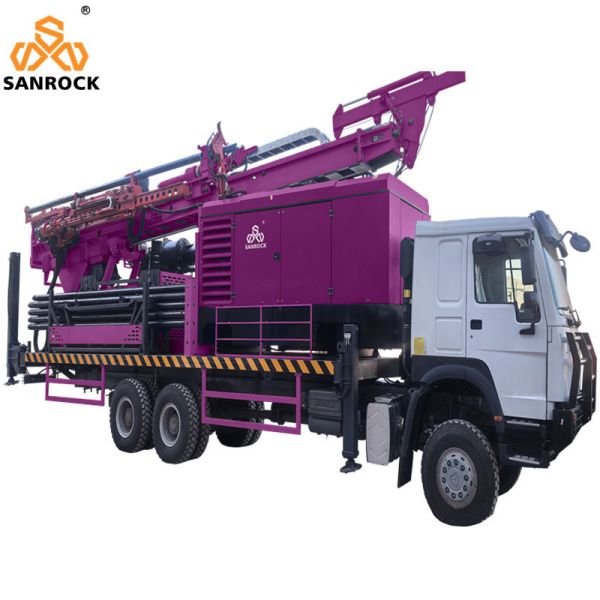

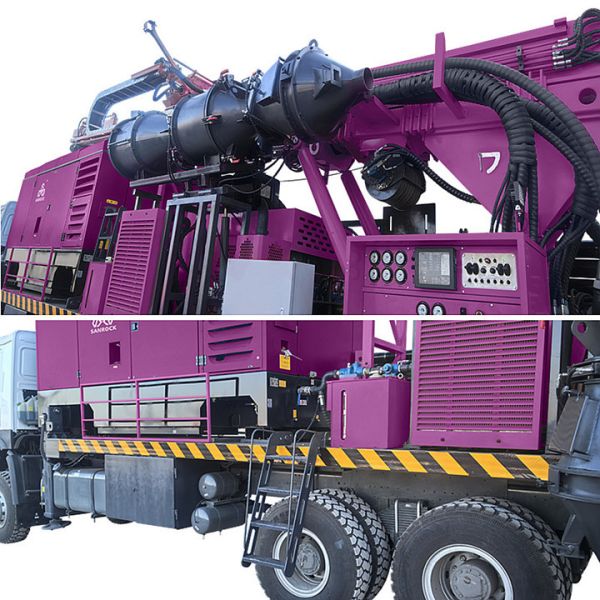

Truck Mounted Drilling Rig With Mud Pump Water Well Drill Machine Reverse Circulation Drilling Rig

Brand Name : SANROCK

Model Number : SRTM400RC / SRTM500RC/ SRTM800RC /SRTM1200RC

Certification : CE ISO 9001:2015

Place of Origin : Zhejiang, China

MOQ : 1Set/Sets per Month

Price : negotiable

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability : 300Set/Sets per Month

Delivery Time : 30-50days

Packaging Details : Nude package for machines, Wooden box package for spare parts, Or customer demand.

Product name : Water Well Drilling Rig, Water Well Drilling Machine

Name : truck mounted water well drilling rig,Reverse Circulation Drilling Rig

Power(w) : 132KW

Drilling depth : 400m-1200m

Drilling diameter : 105-305mm, 105-400mm, 105-550mm, 105-800mm

Lifting force : 22T, 25T, 47T, 57T

Rotary torque : 8000/4000N.m , 10000/5000N.m , 18000/9000N.m , 24000/12000N.m

Working pressure : 1.2-3.5Mpa,1.2-3.5Mpa,1.6-8Mpa,1.6-8Mpa

Air consumption : 16-55m3/min ,16-55m3/min,16-96m3/min,16-96m3/min

Fast lifting speed : 20 m/min ,23m/min, 29 m/min ,30 m/min

Fast forwarding speed : 32m/min,33m/min,42m/min,44m/min

Application : water well drilling rig mobile drilling rig,Hole Hammer Drill Rig,Geological Exploration

Feature : High Drilling Efficiency,Hydraulic Controlling,Multifunctional

Drill rod length : 3.0m 6.0m

Drill rod diameter : 89mm/102mm/114mm/127mm/146mm

Type : Rotary Drilling Rig

Warranty : 1 Year

Dimension(l*w*h) : 11.5*2.25*3.4m

Weight : 23000 KG

Walking speed : 2.5-6.4km/h

Contact Now

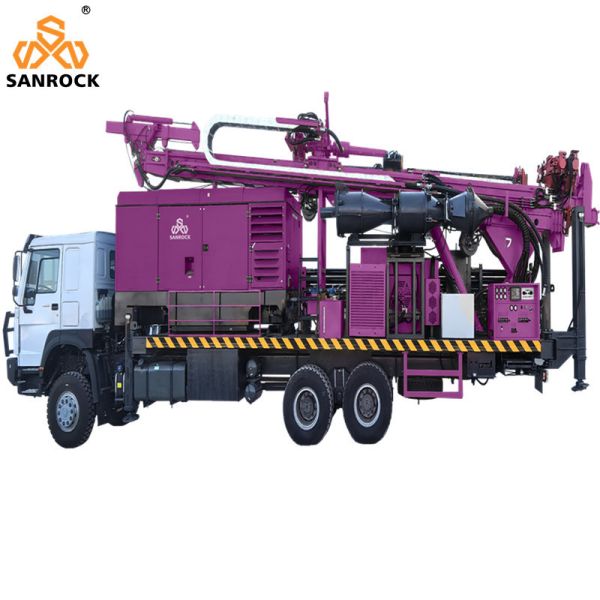

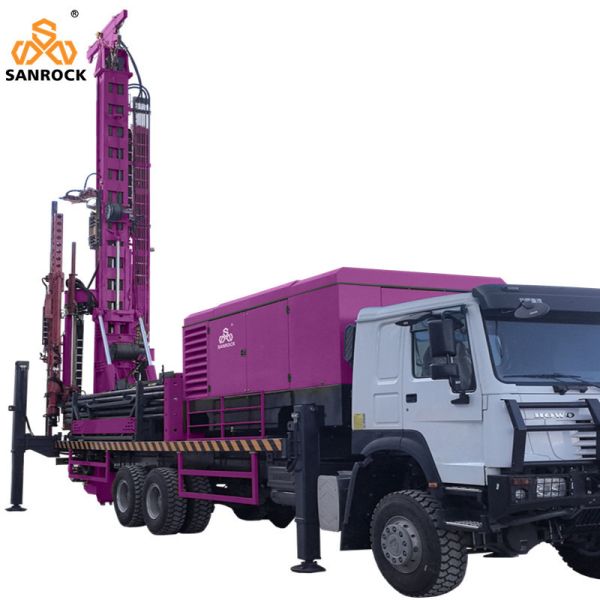

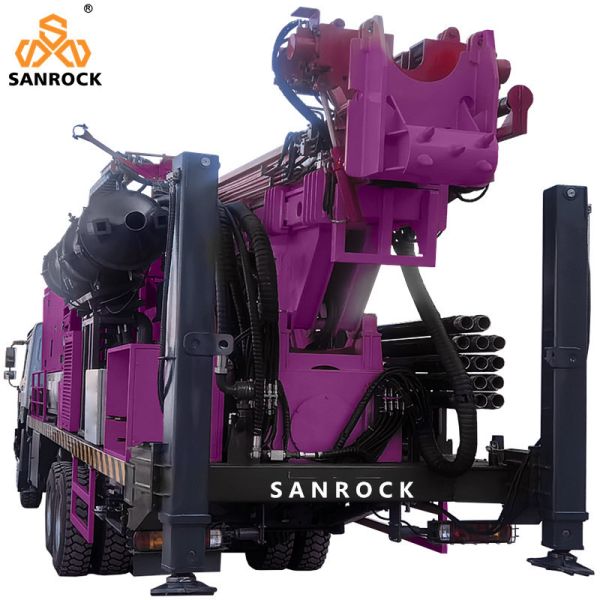

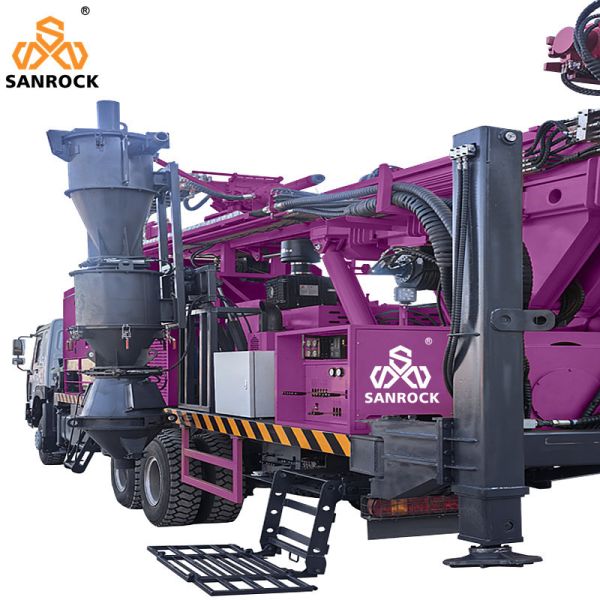

Truck Mounted Drilling Rig With Mud Pump Water Well Drill Machine Reverse Circulation Drilling Rig

Truck Mounted Drilling Rig With Mud Pump Water Well Drill Machine Reverse Circulation Drilling Rig

Truck Mounted Drilling Rig With Mud Pump Water Well Drill Machine Reverse Circulation Drilling Rig

Truck Mounted Drilling Rig With Mud Pump Water Well Drill Machine Reverse Circulation Drilling Rig

Truck Mounted RC Drilling Rig Product Features:
1.Mobility and Efficiency: Mounted on a robust truck chassis, this RC drilling rig offers exceptional mobility, enabling rapid deployment and relocation between drilling sites.
This translates to increased productivity and reduced downtime.
2.Versatility: Designed to handle a wide range of drilling applications, including exploration, blast hole drilling, water well drilling, and geotechnical investigations.
3.RC Drilling Method: Utilizes the Reverse Circulation (RC) drilling method,RC drilling method provides fast penetration rates and high-quality samples, leading to faster project completion and more accurate results.
4.Powerful Drilling Capacity: Equipped with a high-performance drilling engine and robust mast, enabling drilling to significant depths and in various ground conditions.
5 Operator Comfort and Safety: Features an ergonomic operator cabin with intuitive controls, ensuring operator comfort and safety during extended drilling operations.
6.Durability and Reliability: Built with high-quality components and designed for demanding environments, ensuring long-lasting performance and minimal maintenance requirements.
7.Cost-Effectiveness: Reduces overall drilling costs through efficient operation, and versatility across multiple applications.
Please note: This is a general description, and specific features may vary depending on the manufacturer and model of the truck-mounted RC drilling rig.

Truck Mounted Drilling Rig With Mud Pump Water Well Drill Machine Reverse Circulation Drilling Rig

Truck Mounted Drilling Rig With Mud Pump Water Well Drill Machine Reverse Circulation Drilling Rig

Truck Mounted Drilling Rig With Mud Pump Water Well Drill Machine Reverse Circulation Drilling Rig

Truck Mounted Drilling Rig With Mud Pump Water Well Drill Machine Reverse Circulation Drilling Rig

Truck Mounted Drilling Rig With Mud Pump Water Well Drill Machine Reverse Circulation Drilling Rig

Truck Mounted Drilling Rig With Mud Pump Water Well Drill Machine Reverse Circulation Drilling Rig

Products Description

Sanrock RC drilling rig
Model
SRTM400RC
SRTM500RC
SRTM800RC
SRTM1200RC
truck brand
Howo, Dongfeng, FAW, Benz
truck chassis
4*2, 4*4, 6*4, 6*6, 8*4
max drilling depth(m)
300
400
600
1000
drilling diameter(mm)
105-305
105-400
105-550
105-800
air pressure(mpa)
1.2-3.5
1.2-3.5
1.6-8
1.6-8
air consumption(m³/min)
16-55
16-55
16-96
16-96
rod length(m)
3
3.5
6
6
rod diameter(mm)
89/102
102/114
114/127
127/146
RC dual wall rod diameter(mm)
89/102
102/114
114/127
127/146
main shaft pressure(T)
6
7
11
13
lifting force(T)
22
25
47
57
fast lifting speed(m/min)
20
23
29
30
fast forwarding speed(m/min)
32
33
42
44
rotary torque(Nm)
8000/4000
10000/5000
18000/9000
24000/12000
rotary speed(r/min)
75/150
75/150
70/140
86/172
small secondary winch lifting force(T)
1.5
1.5
2.5
2.5
jacks stroke(m)
1.6
1.6
1.7
1.7
drilling efficiency(m/h)
10-35
10-35
10-35
10-35
moving speed(km/h)
2.5
2.5
5
6.4
uphill angle(slope)
21
21
21
21
rig weight(T)
11
12
17
23
dimension(m)
6.2*1.85*2.3
7*2.1*2.8
10.5*2.25*3.3
11.5*2.25*3.4
working condition
unconsolidated formation and stone head
drilling method
top drive hydraulic rotary and push hammer or mud drilling
suitable hammer
medium and high air pressure series
optional accessories
mud pump,centrifugal pump,generator, foam pump

Truck Mounted Drilling Rig With Mud Pump Water Well Drill Machine Reverse Circulation Drilling RigTruck Mounted Drilling Rig With Mud Pump Water Well Drill Machine Reverse Circulation Drilling Rig

Truck Mounted Drilling Rig With Mud Pump Water Well Drill Machine Reverse Circulation Drilling Rig

Truck Mounted Drilling Rig With Mud Pump Water Well Drill Machine Reverse Circulation Drilling Rig

Truck Mounted Drilling Rig With Mud Pump Water Well Drill Machine Reverse Circulation Drilling Rig

Truck Mounted Drilling Rig With Mud Pump Water Well Drill Machine Reverse Circulation Drilling Rig

Truck Mounted Drilling Rig With Mud Pump Water Well Drill Machine Reverse Circulation Drilling Rig

Truck Mounted Drilling Rig With Mud Pump Water Well Drill Machine Reverse Circulation Drilling RigTruck Mounted Drilling Rig With Mud Pump Water Well Drill Machine Reverse Circulation Drilling Rig

Company Profile

Truck Mounted Drilling Rig With Mud Pump Water Well Drill Machine Reverse Circulation Drilling Rig

Truck Mounted Drilling Rig With Mud Pump Water Well Drill Machine Reverse Circulation Drilling Rig

Truck Mounted Drilling Rig With Mud Pump Water Well Drill Machine Reverse Circulation Drilling Rig

Truck Mounted Drilling Rig With Mud Pump Water Well Drill Machine Reverse Circulation Drilling Rig

1.What can you buy from us?
DTH drilling rig,Integrated DTH DTH drilling rig ,core drilling rig,highway pile driver,solar pile driver ,anchor pile driver,rotary drill rig ,Top Hammer drill rig,Underground jumbo drill rig ,DTH hammer,screw air compressor,screw air compressor,piston air compressor,pneumatic rock drill ,drill rod,drill bit,PDC drill bit,top hammer drill bit,tricone bit ,spare parts.

2.How can I make payment?
A: You can pay directly online on Alibaba with credit card, or TT, Western Union, LC etc.

3. How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT.You can also appoint shipping method you like before we ship.

4.How is your quality control?
A: We have our own experienced QC.There will be strict inspection and testing for every order before shipping out.

5.Do you have any certificate of authorization?
A: Our machinery is CE certified.
